Sealing
Rider rings are mainly used to correct the axial run out of piston rings.

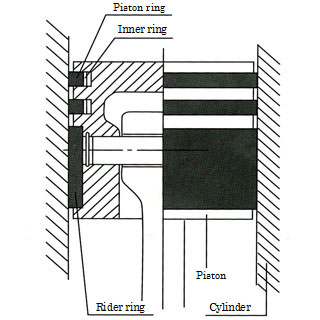

These rings, mounted in the upper or lower part of a piston, are necessary to increase the piston's compression efficiency. Their materials are selected according to the service condition.
Also, rider tings with metal are sometimes used to prevent back pressure.

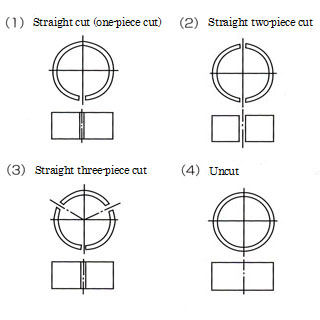

| Shapes of rider rings | ||
|---|---|---|
 |
 |
|
◆To order our rider rings...
To design rider rings, we need to take thermal expansion into consideration.
Please make sure to inform us of the following items.
| 1. | Equipment types; names, vertical/horizontal | 6. | Piston materials and cylinder materials |
| 2. | Inlet pressure, outlet pressure | 7. | Detailed drawing of pistons and rods |
| 3. | Inlet temperature, outlet temperature | 8. | Rod materials |
| 4. | Piston and rod speed (or speed of rotation X stroke length） |
9. | Rod cooled or not |
| 5. | Fluid or gas names |
