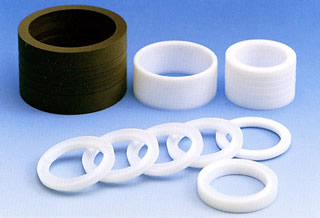

V rings are low-torque packing that maintains vacuum to high pressure with low tightening pressure and demonstrates excellent chemical resistance.
Also, these rings are self-sealing packing whose lip surface opens by internal pressure.
V rings have been widely used as shift packing in valve systems, plunger pump agitators and shaft packing instruments of mechanical seals.
It is recommended that our filled TRIFRON® V rings be used for sealing a portions that always slides and high pressure seals.
For V ring use, please see the number of V rings and other information according to the service conditions in the below figures, and give us instructions on the following items.

1.Machine name　2.Pressure　3.Temperature　4.Fluid name　5.Stuffing box size　6.Sliding speed

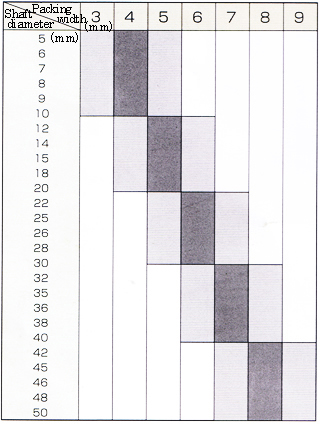

Shaft diameter and packing width		Packing width and height
		Packing width W(mm) Packing height H(mm) Adapter ring height Adapter ring height 3 1.6 0.9 2.4 4 2.4 1.2 3.2 5 3.0 1.5 4.0 6 3.6 1.8 4.8 7 4.2 2.1 5.6 8 4.8 2.4 6.4 9 5.4 2.7 7.2 10 6.0 3.0 8.0
		Operating pres. and no. of packing
		Type Operating pres. range (MPa) No. of packing For mechanical seal 0～2 2～3 Standard 2～5 5～7 3 4 For high pressure 7～15 15～30 5 6

V packing shape
